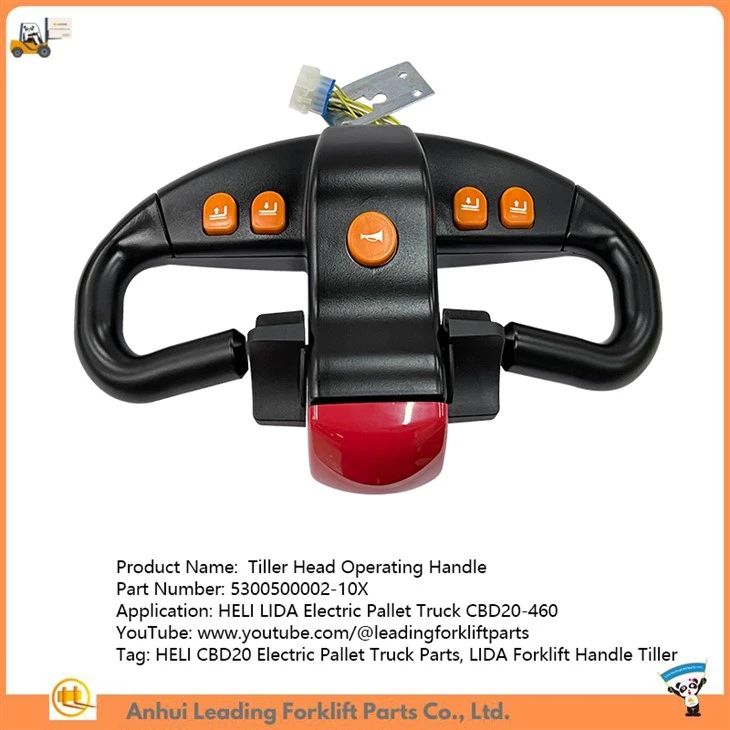

Product Title: Tiller Head Operating Handle

Product Model: 5300500002-10X

Tiller Head Operating Handle for Electric Pallet Trucks

I. Structure of the Forklift Handle Tiller

The handle tiller of an electric pallet truck is composed of two parts: the upper part (control board) and the lower part (handle). The exterior is made of injection-molded plastic, featuring multiple buttons and a joystick. Inside the handle, there is a chip connected to the motor via a wire.

II. Signal Transmission Principle

1. Button Signal Transmission:

The control board is the core component of the signal system in the pallet truck handle, including modules like a microcomputer, AD converter, and signal lock. When a button on the handle is pressed, it triggers the corresponding button switch. This switch sends a signal to the control board, which then converts the signal into a command for the motor. This enables the electric pallet truck to move forward, reverse, accelerate, or turn.

2. Joystick Signal Transmission:

The joystick on the pallet truck handle is a crucial control element for moving forward, reversing, and turning. Inside the joystick, there is a resistance module. When the joystick is tilted in a direction, the resistance value changes. This change is detected and processed by the AD conversion chip on the control board, generating the corresponding control command signal.

The working principle of the electric pallet truck handle mainly includes button signal transmission and joystick signal transmission. The chip inside the handle converts these signals into control commands for the motor, allowing for the operation of the electric pallet truck. Since the handle is a vital control component, a well-designed handle is essential for ensuring the proper functioning of the electric pallet truck.
