Forklift Mast
HELI Forklift Mast Supply
The forklift mast is an indispensable component that significantly influences a forklift's overall performance and operational efficiency. As the heart of material handling operations, it is responsible for lifting, stacking, and transporting goods with precision and reliability. For logistics, manufacturing, and construction businesses, the choice of forklift mast can make or break their workflow. This is where the HELI forklift mast stands out, offering unparalleled advantages that set it apart in the market.
This article delves into the world of HELI forklift masts, providing insights into their functionality, types, structural details, advantages, and selection tips to empower procurement professionals.

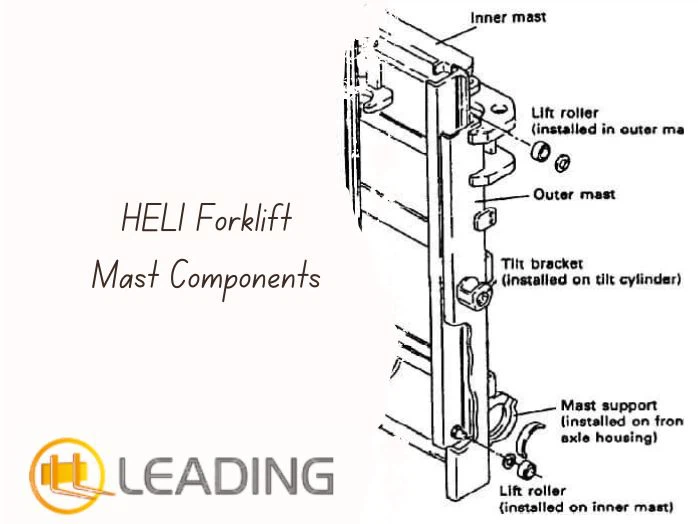

Main Components of a Forklift Mast
The robust design of the HELI forklift mast includes several critical components that work in harmony to ensure optimal performance:
Each component of the HELI forklift mast is meticulously engineered to work together, creating a system that is both stable and efficient. The integration of advanced hydraulic technology and durable materials ensures that the mast can handle the most demanding tasks with ease, providing operators with the confidence they need to perform at their best.
Inner and Outer Frames
These provide structural stability and bear the weight of loads.
Sheaves and Chains
These work together to lift and lower the load.
Guides and Rollers
Minimize friction, ensuring seamless motion and reducing wear and tear.
Hydraulic Cylinders (Lift and Tilt Cylinders)
Deliver the power for vertical and tilting movements, which is critical for heavy-duty applications.
HELI forklift masts come in a wide range of configurations, categorized by the number of mast stages and their specific functionalities. Understanding the applications, advantages, and limitations of each type is essential for selecting the right mast for your operation. Below, we break down the 1-5 stage masts and their unique features.
1. Simplex Mast ( 1-Stage Mast )
The simplex mast consists of a single mast stage, offering limited lift height. This type of mast has no moving mast sections, making it the simplest design.
Applications
- Low-Rise Applications: Ideal for environments where lift heights are minimal, such as small warehouses, retail stores, or light manufacturing facilities.
- Confined Spaces: Suitable for narrow aisles or areas with limited headroom, where vertical clearance is restricted.
- Frequent Horizontal Movement: Perfect for operations that require more horizontal travel than vertical lifting, such as palletizing or short-distance material transport.
Advantages:
- Simplicity and Cost-Effectiveness: The simplest design with fewer moving parts, making it easier to maintain and repair.
- Compact Size: Takes up less space, allowing for better maneuverability in tight spaces.
- Lower Initial Cost: Generally more affordable compared to multi-stage masts, making it an attractive option for budget-conscious buyers.
- Energy Efficiency: Requires less hydraulic power to operate, leading to lower fuel consumption and reduced operating costs.
Limitations:
- Limited Lift Height: Suitable only for low-height operations.
- Lack of Flexibility: Not ideal for operations requiring higher lift heights or more complex tasks.
2. Duplex Mast (2-Stage Mast)
The duplex mast consists of two mast stages, allowing for moderate lift heights. This type includes a free-lift feature, enabling the carriage to lift without increasing the overall mast height.
Applications
- Warehousing with moderate storage heights.
- Operations requiring access to upper shelving.
- Handling tasks inside containers or trailers, thanks to the free-lift capability.
Advantages:
- Increased Lift Height: Offers a balance between cost and performance, providing lift heights up to 6 meters (19.7 feet).
- Better Stability: More stable than a simplex mast, especially when handling heavier loads, thanks to its two-stage design.
- Versatile Applications: Can be used in both indoor and outdoor environments, making it a flexible choice for various industries.
- Improved Efficiency: Allows for faster and more efficient material handling compared to single-stage masts, reducing downtime and increasing productivity.
Limitations:
- Higher Initial Cost: More expensive than a simplex mast due to its more complex design.
- Moderate Vertical Clearance: While it can handle higher lifts, it still requires sufficient vertical clearance, which may limit its use in some confined spaces.
- More Moving Parts: With more components, there is a slightly higher risk of wear and tear, potentially leading to increased maintenance requirements.
3.Triplex Mast (3-Stage Mast)
The triplex mast features three stages, allowing for higher lift heights while maintaining a compact design when collapsed. It is one of the most versatile and commonly used mast configurations.
Applications:
- High-Rise Warehouses: Perfect for tall warehouses, distribution centers, and automated storage systems
- Multi-Level Storage: Ideal for facilities with multiple levels of shelving or racking, where vertical reach is essential.
Advantages:
- Compact Design: The collapsed height is significantly lower than its maximum lift height.
- High Reach Capability: Suitable for operations requiring tall stacking.
- Efficiency: Ideal for operations requiring frequent vertical movement.
Limitations:
- Higher Initial Cost: More expensive than simplex and duplex masts due to its more complex structure and advanced features.
- Increased Maintenance: With more moving parts, regular maintenance is essential to ensure optimal performance and longevity.
- Requires More Vertical Clearance: The extended lift height means that it requires more vertical clearance, which may not be suitable for all facilities.
4.Quad Mast / Quadruplex Mast (4-Stage Mast)
The quad mast has four stages, designed for applications requiring extreme lift heights. It is engineered for operations with both high stacking demands and confined operating spaces.
Applications:
- Large warehouses or distribution centers with towering storage racks.
- High-bay warehouses where maximizing vertical space is crucial.
- Environments requiring both high reach and low collapsed height, such as in ports or specialized industries.
Advantages:
- Exceptional Lift Heights: Can handle towering storage racks with ease.
- Compact Collapsed Design: Despite its high reach, it remains relatively compact when fully lowered.
Limitations:
- Higher Cost: The advanced design comes with increased manufacturing and maintenance costs.
- Reduced Stability at Maximum Height: Requires careful handling and operation to ensure safety.
- Requires Specialized Training: Operators may need additional training to handle the quad mast effectively, especially in narrow aisle environments.
- Vertical Clearance Requirements: The extended lift height means that it requires substantial vertical clearance, limiting its use in facilities with lower ceilings.
5.Quintuple Mast (5-Stage Mast)
The quintuple mast is a five-stage design, providing the highest lift height among forklift masts. This mast is less common and is used for extremely specialized applications.
Applications:
- Industries with unique vertical stacking requirements, such as aviation or heavy equipment manufacturing.
- High-rise storage environments where space optimization is critical.
- Applications requiring maximum height with minimal collapsed height for confined spaces.
Advantages:
- Unparalleled Lift Heights: The go-to option for extreme vertical stacking.
- Compact Collapsed Height: Innovative design minimizes space consumption when fully lowered.
Limitations:
- Highest Initial Cost: The most expensive option, due to its advanced engineering, specialized materials, and complex manufacturing process.
- Complex Maintenance: With five stages, the mast has the most moving parts, requiring regular and specialized maintenance to ensure optimal performance.
- Operator Expertise: Operators must have extensive experience and training to handle the quintuple mast safely and efficiently.
- Vertical Clearance Requirements: The extreme lift height means that it requires a significant amount of vertical clearance, limiting its use to specialized facilities.
Advantages of HELI Forklift Masts
Superior Manufacturing Processes
Advanced Techniques: Incorporating laser cutting, robotic welding, and CNC machining ensures precision in every component.
Surface Treatment: Anti-corrosion coatings and heat treatments enhance durability and lifespan.
Versatile Customization
HELI masts are designed to adapt to varying operational environments. From extreme temperatures to specialized industries, HELI provides tailored solutions to meet unique demands.
Unmatched Stability
The combination of high-strength steel and precision engineering ensures that HELI forklift masts remain stable even under the most challenging conditions. The optimized hydraulic system further enhances performance in heavy-duty environments, providing reliable operation and minimizing downtime.
Rigorous Quality Control
HELI maintains a stringent quality control system that covers every aspect of production, from raw material selection to final product inspection. Advanced testing equipment and strict adherence to international standards guarantee that each forklift mast meets the highest quality criteria. This commitment to excellence ensures that customers receive a product that is built to last and perform flawlessly.
How to choose the right HELI forklift mast
When choosing a HELI forklift mast, it is important to consider the following factors:
Load Capacity
The mast must be able to handle the weight of the heaviest load that will be lifted.
01
Lift Height
The mast must be able to reach the desired height.
02
Mast Tilt
The mast must be able to tilt to allow for safe and efficient handling of loads.
03
Mast Tilt Angle
The mast must be able to tilt to the desired angle to allow for safe and efficient handling of loads.
04
Mast Tilt Speed
The mast must be able to tilt at a speed that is appropriate for the application.
05
When you choose Leading Forklift Parts as your forklift mast supplier, you can be confident that you're receiving genuine HELI Forklift parts. This commitment to quality means that your forklift will continue to operate at peak efficiency for years to come.
HELI forklift masts are a trusted choice for businesses seeking reliability, performance, and customization. With a range of options to suit diverse operational needs, HELI continues to lead the market in forklift innovation.
Contact us today to learn more about HELI forklift masts and discover how we can help optimize your material handling operations!
01
Genuine HELI Forklift Mast Components
Each component is manufactured to exact specifications, ensuring compatibility and long-term performance.
02
Competitive Pricing
Enjoy cost-effective solutions without compromising on quality.
03
Stable Supply Chain
Benefit from a reliable supply chain that ensures timely delivery of parts and accessories.
04
Comprehensive Support
Receive full-service support for the HELI Forklift spare parts, including installation, maintenance, and technical assistance, to keep your operations running smoothly.
Everything You Need to Know
How do I choose the right forklift mast for my application?
Consider factors such as lift height, load capacity, and operating environment. Consulting with a HELI expert can help you select the most suitable forklift mast for your specific needs.
What is the difference between a simplex and a triplex mast?
A simplex mast has one stage of lift, while a triplex mast has three stages, allowing for higher lift heights. The choice depends on your specific lifting requirements.
Where can I purchase HELI forklift masts and accessories?
You can purchase HELI forklift masts and accessories directly from authorized dealers or through our online platform. Contact us for more information on purchasing options and pricing.
What is the weight capacity of HELI forklift masts?
HELI forklift masts are available in various weight capacities, ranging from light-duty to heavy-duty models. Choose the capacity that best suits your operational needs.
Are HELI masts compatible with other forklift brands?
Some HELI masts can be adapted for use with other forklift brands; consult our experts for compatibility details.
What is the maximum lift height of a HELI forklift mast?
The maximum lift height varies depending on the model. Some HELI forklift masts can reach heights of up to 8 meters or more, making them suitable for high-rise applications.
How does HELI ensure the safety of its forklift masts?
Safety is a top priority at HELI. All forklift masts undergo rigorous testing to ensure they meet or exceed safety standards. Additionally, HELI incorporates safety features such as overload protection and emergency stop mechanisms.
How often should I maintain my HELI forklift mast?
Regular maintenance is essential to ensure optimal performance. Follow the manufacturer's guidelines for routine inspections and servicing.
Can HELI masts be customized for specific needs?
Yes, HELI offers tailored mast solutions to meet unique operational requirements.
What materials are used in HELI forklift masts?
High-strength steel and precision-machined components ensure durability and performance.
Are replacement parts available for HELI masts?
Yes, we supply a wide range of original and aftermarket parts for HELI masts.
How do I choose between a standard and a free-lift mast?
A standard mast is suitable for open spaces, while a free-lift mast is ideal for confined spaces.
