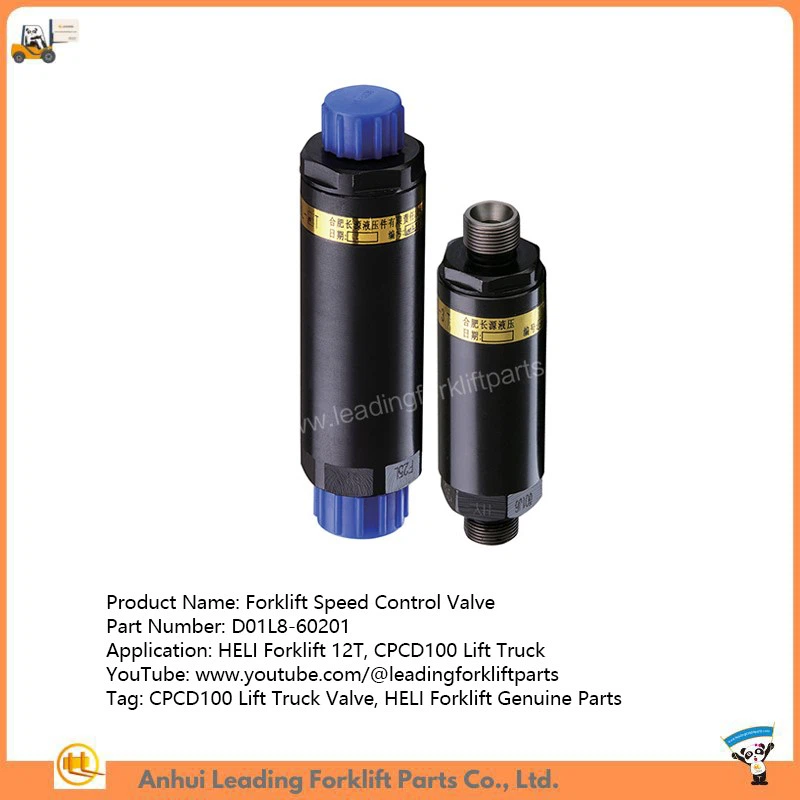

Product Title: Forklift Speed Control Valve

Product Model: D01L8-60201













Item	Description
P/N	D01L8-60201
Product Name	Forklift Speed Control Valve
Applied Model	HELI Forklift 12T, CPCD100 Lift Truck
Net Weight (kg)	0.9
Gross Weight (kg)	1.1
Qty per Carton	1
Carton Size (cm)	22*9*9

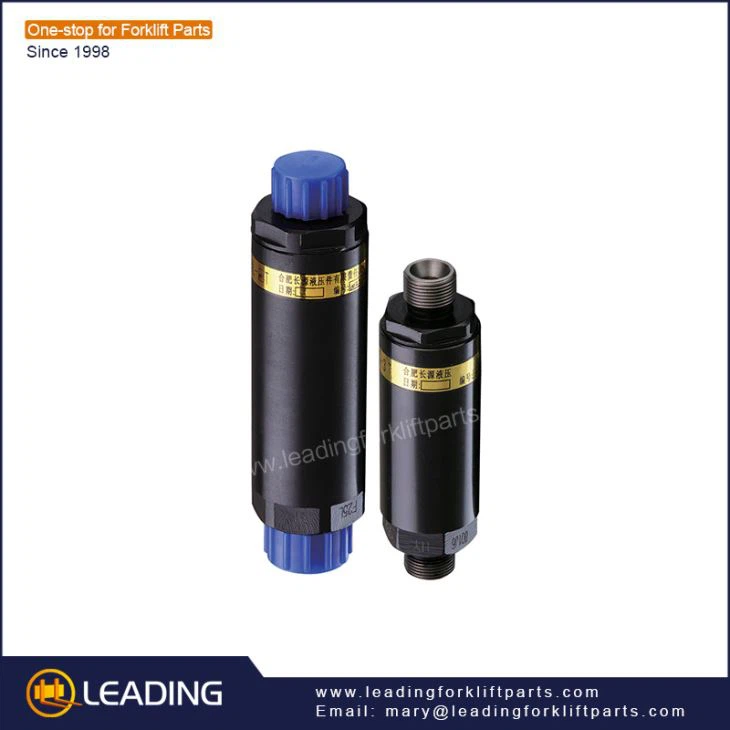

Product Description of Forklift Speed Valve



● XSF series forklift speed limit valve function is that oil passes in straight forward while reversing throttle oil, and through the internal load feedback system automatically adjusts the opening amount of the valve plug to realize the stable constant throttling reverse effect.

● This speed-limited valve is widely used in 1-10T forklifts for controlling the speed of hydraulic cylinder decrease and return.



Characteristics of Forklift Speed Valve

● Body surface using a trivalent chromium plating process, environmentally friendly, good looking, anti-rust.

● Straight Forward: a small pressure loss of this forklift speed limit valve.

● Reverse Constant: Reverse the throttle, via load feedback, and the valve automatically adjusts the output steady flow.

● Body Structure: tubular structure of this forklift speed limit valve.



Application

● This speed-limited valve is widely used in 1-10T forklift hydraulic lifting systems to control the down speed of the cylinder.



Specification

Model	Nominal size (mm)	Pressure (MPa)		Speed-limiting flow (L/min)	Tonnage of fork lift truck (T)	Joining port	Weight (Kg)
XSFa-F10G-15T	10		20	45	1.5	G1/2B	0.8
XSFa-F10G-25T				54	2.5
XSFa-F10G-30T				65	3.0
XSFa-F10G-35T				72	3.5
XSF-F16L-1T	16	20		36	1	M22x1.5	0.7
XSF-F16L-2T				48	2
XSF-F16L-3T				60	3
XSF-F16L-4T				93	4	M27x1.5	1.3
XSF-F20L-6T	20	20		121	6
XSF-F20L-7T				153	8
XSF-F25L-10T	25	20		189	10	M32x2	1.4



Mode Coding

XSF ※ - F ※※ G - ※※T

①②③④⑤⑥

① Product code

② Design code

③ Pressure grade F:20MPa

④ Nominal size 10 mm

⑤ Joining port M: Common thread G: Pipe thread

⑥ Forklift truck tonnage
