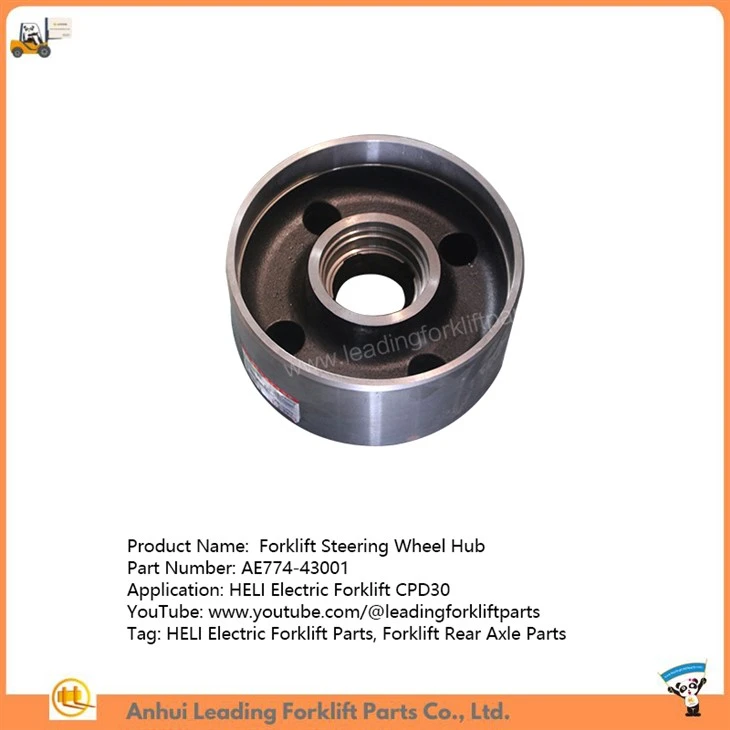

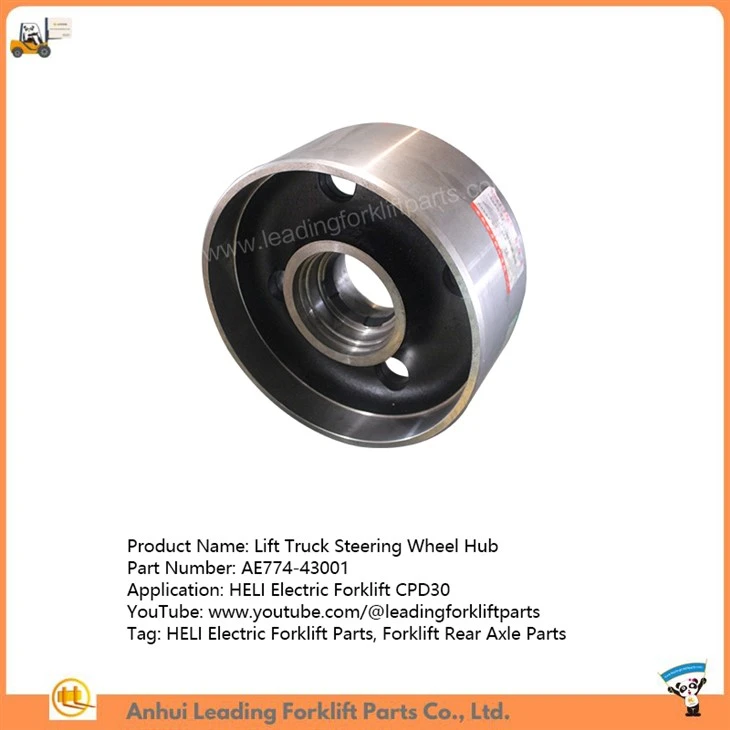

Forklift Steering Wheel Hub

Product Title: Forklift steering wheel hub

Product Model: ZXQ-AE774-43001 Forklift steering wheel hub

Forklift Hubs:

The hub of a forklift is a crucial component that connects the chassis to the forklift axle assembly. The forklift axle assembly is divided into the front axle (drive axle) and the rear axle (steer axle), with distinct structures and connection methods for the front and rear hubs.

Structure and connection of the front hub:

One end of the front hub is rigidly connected to the axle flange using bolts, allowing the axle to drive the front wheel via the hub and wheel rim.

The other end is bolted to the wheel rim and brake hub, enabling the braking action of the brake system on the front wheel.

Inside the front hub, bearings allow the front wheel to rotate smoothly on the drive axle housing.

Structure and connection of the rear hub:

The rear wheel hub is mounted on the universal joint and secured with bearings. Its flange connects with the wheel rim.

Inside the hub, there are machined surfaces for bearing installation, with space reserved for lubricating oil storage.

These hub designs and connection methods ensure the proper functioning of drive and steering capabilities in forklifts, providing essential support and stability to meet various operational conditions and environmental demands.
