Hydraulic Gear Pump
CPD25 Forklift Gear Pump
Forklift Gear Pump
HELI Forklift Gear Pump

Hydraulic Gear Pump

Hydraulic gear pumps, known for their simple structure, compact size, lightweight, and reliable operation, are commonly used in forklifts. When selecting a gear pump for a forklift, choose the pressure according to the system design requirements and the flow rate based on the desired lifting speed. For pumps directly driven by the engine, a high-speed gear pump is recommended. As a positive displacement hydraulic pump, the gear pump's output pressure varies with the load, necessitating the installation of a safety valve.

Send Inquiry

Chat Now

Product Introduction

Product Title: Forklift Hydraulic Pump

Product Model: CBTD-F416-ALH4-AT

Products Photos

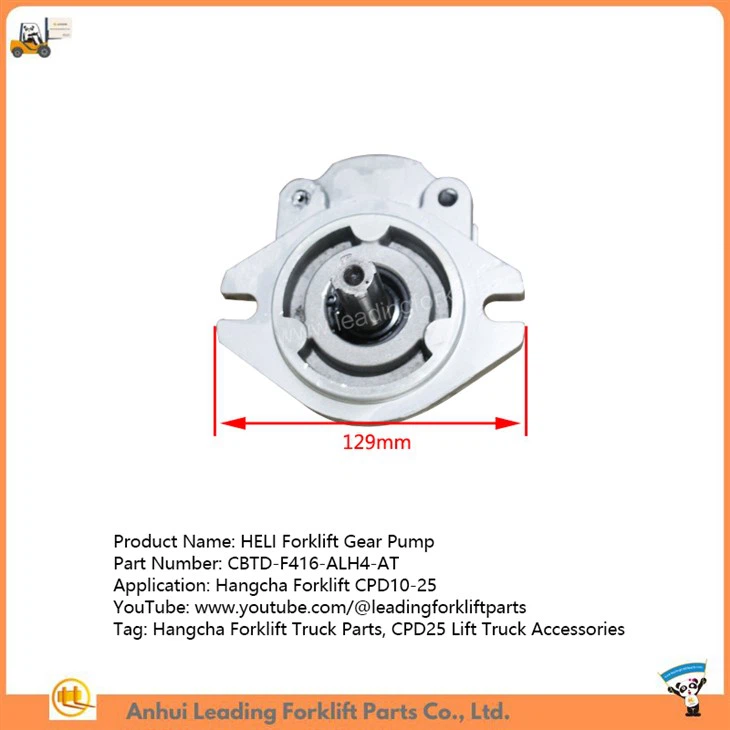

Forklift Hydraulic Pump

HELI Forklift Gear Pump

Products Parameters

Item	Description
Product Name	Forklift Hydraulic Pump
P/N	CBTD-F416-ALH4-AT
Application	Hangcha Forklift CPD10-25
Net Weight (kg)	3.2
Gross Weight (kg)	3.5
Qty per Carton	1
Carton Size (cm)	161622

Products Description

Hydraulic Gear Pump for Forklift

Hydraulic gear pump for forklift has strong insusceptible to impurities in hydraulic fluid. The forklift hydraulic gear pump body is high-strength aluminum with a more optional output shaft. It has high volumetric efficiency even at a low speed of 400rpm. This hydraulic forklift gear pump is widely applied to 3T forklifts.

file0002

Specification

Model	Nominal displacement (ml/r)	Pressure (MPa)		Speed (r/min)			Volumetric Efficiency (≧%)	Shaft End	Joining Port	Weight (Kg)
		Rate	Max	Min	Rated	Max
CBT-F430-AFHL	30	20	25	400	2500	3000	92	Rectangle Spline	Flange	3.8
CBT-F430-AFHR								Rectangle Spline	Flange
CBT-F430-ALHL								Rectangle Spline	Screw
CBT-F430-ALHR								Rectangle Spline	Screw
CBT-F430-AFΦL								SAE Spline	Flange
CBT-F430-AFΦR								SAE Spline	Flange

Model Denomination

1. Product code

2. Pressure grade F: 20MPa

3. Gear modulus 4

4. Nominal displacement (ml/r)

5. Mounting A: Oval

6. Joining port F: Flange L: Screw

7. Shaft end P: Plain key Φ: SAE spline H: Rectangle spline X: Involute spline

8. Rotation L: Left ( Counterclockwise) R: Right ( Clockwise)
