Forklift Directional Switch
Product Title: Forklift Directional Switch
Product Model: A61S2-41601 for HELI CPD10-30T

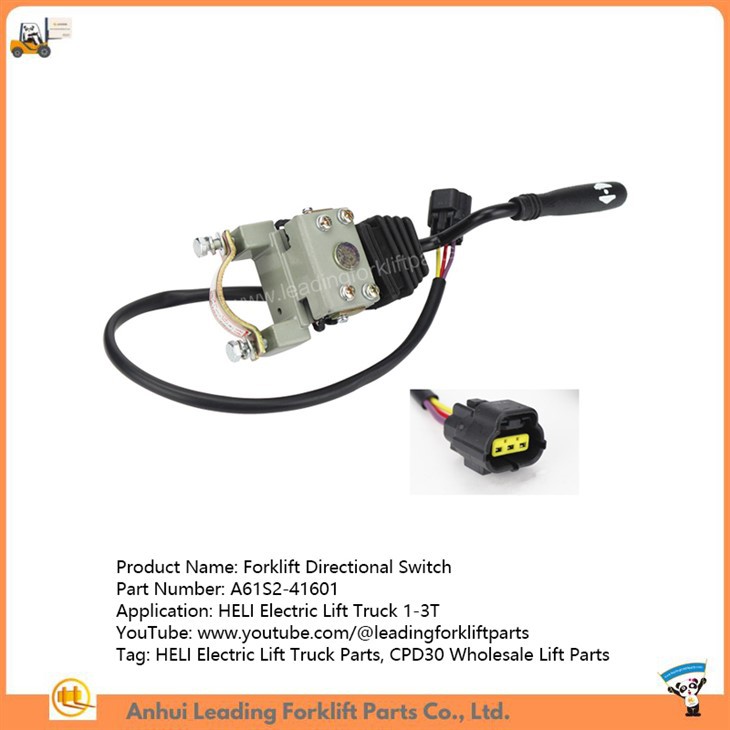

Products Photos
Products Parameters
|
Item |
Description |
|
Product Name |
Forklift Directional Switch (waterproof 3 wires) |
|
P/N |
A61S2-41601 |
|
Applied Model |
HELI Electric Lift Truck 1-3T (single handle JK352-waterproof 3X) |
|
Net Weight (kg) |
0.40 |
|
Gross Weight (kg) |
0.5 |
|
Qty per Carton |
1 |
|
Carton Size (cm) |
29*8*6 |
Products Description
Forklift Directional Switch is a Combination Switch
The forklift direction switch is a combination switch. Its main functions are the forward and reverse switch of the forklift's driving direction, the steering switch, and the gear switch of the front and rear headlights. There are two types of forklift direction switches: single-handle and double-handle.
Replacement of Forklift Directional Switch:
1. Remove the upper and lower covers of the steering column (remove 4 screws);
2. Remove the connection of the 8-core tap between the combination switch rope and the main line harness;
3. Remove the two screws that fix the steering shaft and combination switch hoop, and then remove the switch. T = 2.4Nm (0.25kgfm).
