Forklift Brake Master Cylinder | HELI 3 Ton Forklift Brake Parts | CPCD30 Lift Truck Accessories |25595-40302

The brake master cylinder is part of the forklift brake assembly and is installed under the brake pedal. Its working principle is to convert the pressure on the brake pedal into hydraulic pressure and relay it to the wheel cylinder to help the brake mechanism stop the forklift. This master cylinder is a forklift genuine part and applies to HELI 3Ton lift trucks.
Send Inquiry
Chat Now
Product Introduction

Product Title: Brake Master Cylinder for HELI CPCD30 Lift Truck

Product Model: 25595-40302 forklift genuine parts for HELI

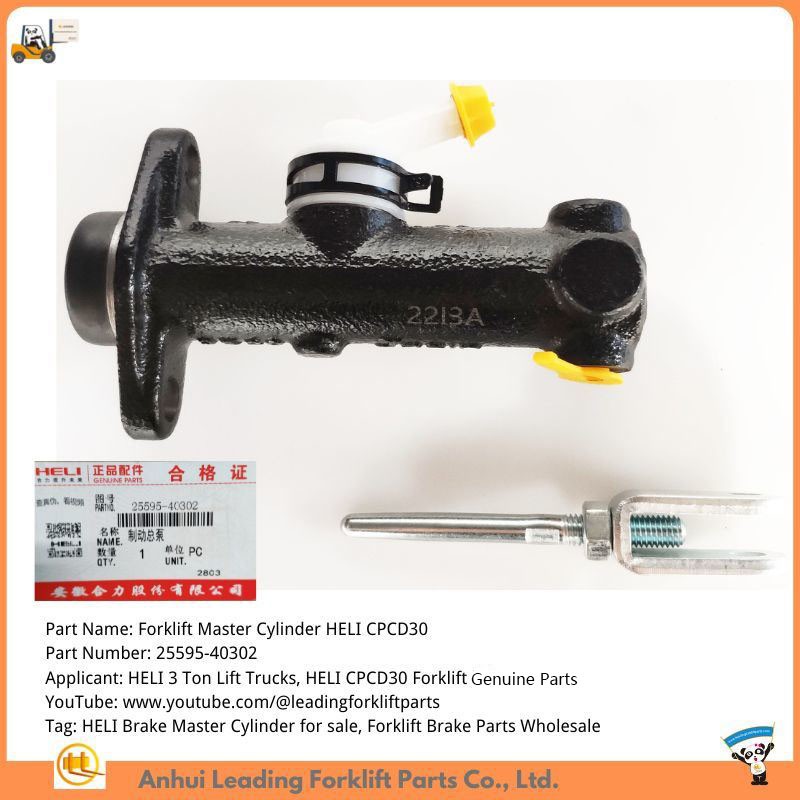

Forklift Master Cylinder

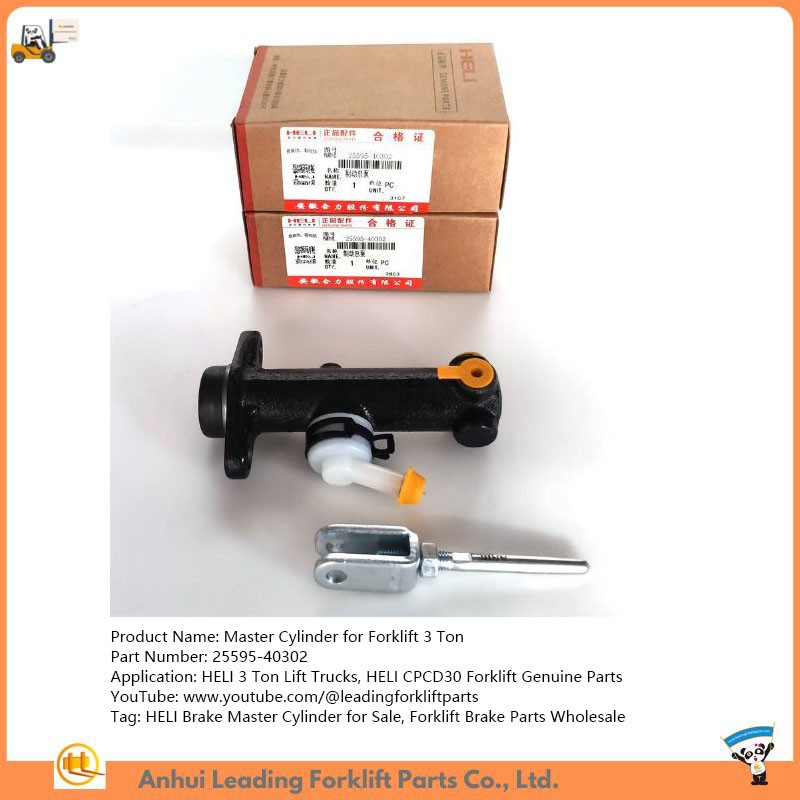

Master Cylinder for Forklift 3 Ton







The Parameters of This Forklift Brake Master Cylinder

Item

Description

Product Name

Forklift Brake Master Cylinder

P/N

25595-40302

Applied Model

HELI 3Ton Lift Truck, CPCD30 Forklift

Net Weight (kg)

0.80

Gross Weight (kg)

1.10

Qty per Carton

1

Carton Size (cm)

15*11*8



How to install a forklift brake master cylinder?

1. When installing a new brake master cylinder, ensure that the push rod is coaxial with the piston, and measure the hollow depth of the piston ejector rod in the front chamber (if equipped with a booster).

2. After replacing the master cylinder, clean the original brake fluid and use qualified brake fluid of the same specification to avoid mixing to prevent damage to the master cylinder.

3. When adding brake fluid, add an appropriate amount to the oil cup, step on the brake pedal to fill the master cylinder with brake fluid, and adjust it through the wheel cylinder.

4. When connecting the hydraulic pipeline, check the master pump and joint seals.

5. Depress the brake pedal to drain the air from the pump, pay attention to the bleed screw, if not, bleed the air on the wheel cylinder.

6. Adjust the gap between the brake pad and the brake drum and the stroke of the master cylinder cylinder, and add an appropriate amount of brake fluid.

7. After debugging the performance of the master cylinder and connecting the oil pipe, test the braking effect to ensure that the braking effect of the two wheels is consistent.
